KCA

The KCA range of high quality and reliable compasses provide the perfect product, capable for use in any type of aircraft with a strong emphasis on light weight, clear vision and consistent accurate magnetic indication.

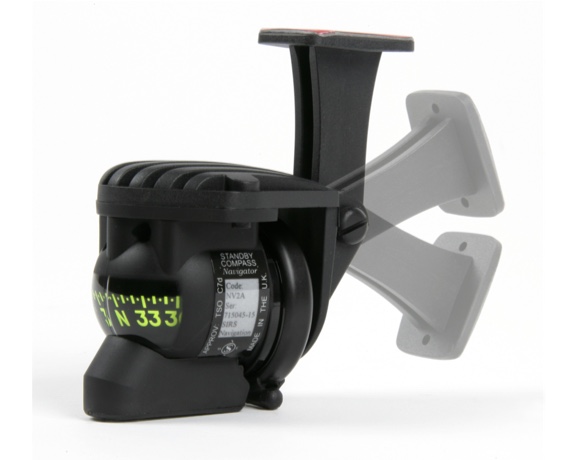

This slim profiled magnetic compass is mounted at or above eye level and can be fully adjusted for magnetic coefficients A, B & C, providing high accuracy.

The compass range can be supplied with White or Fluorescent Yellow card legend and illuminated with a filament or LED lamp between 6 and 28 Volts. The range also includes compass models fully integrated with NVIS / NVG Green A and B compatibility. Its compact size and low weight make this compass perfect for all aircraft applications where panel mounting is not possible. A unique magnetic correction system ensures reliable and accurate magnetic indication with a silicone fluid damping to eliminate unwanted card movement without any ‘lead or lag’ headings.

The compass, selected by most leading aircraft manufacturers, is ETSO and TSO approved and supplied with a CAA Form 1 release certificate where required.

Refer to the specification table for additional information surrounding each compass model.

Specification table

This product may also be of interest

Pegasus

The Pegasus range are similar to the KCA versions in design but are suitable for panel mount configuration.

Find out more

Specification table

Compass Part Number
                 Voltage
               Light colour
                    Card Legend Colour

KCA0104W

28V

Red

White

KCA0104FY

28V

Red

Fluorescent Yellow

KCA0105W

28V

Blue / White

White

KCA0106W

28V

Red

White

KCA0113W

28V

Blue / White

White

KCA0113FY

28V

Blue / White

Fluorescent Yellow

KCA0114W

28V

Blue / White

White

KCA0116W

28V

Red

White

KCA0120W

28V LED

Warm White

White

WL1001KCA1

5V

Blue / White

White

1004KCA2

5V

NVG - NVIS Green A

White

1005KCA1

28V

NVG - NVIS Green B

White

1006KCA1

28V

NVG - NVIS  Blue

White

1007KCA1

28V

NVG - NVIS Green B

White

1008KCA2

28V

Blue / White

White

1009KCA1

28V

NVG - NVIS Green B

Fluorescent Yellow

1014KCA1

5V

NVG - NVIS Green B

White

KCA0104W

                 Voltage

28V

               Light colour

Red

                    Card Legend Colour

White

KCA0104FY

                 Voltage

28V

               Light colour

Red

                    Card Legend Colour

Fluorescent Yellow

KCA0105W

                 Voltage

28V

               Light colour

Blue / White

                    Card Legend Colour

White

KCA0106W

                 Voltage

28V

               Light colour

Red

                    Card Legend Colour

White

KCA0113W

                 Voltage

28V

               Light colour

Blue / White

                    Card Legend Colour

White

KCA0113FY

                 Voltage

28V

               Light colour

Blue / White

                    Card Legend Colour

Fluorescent Yellow

KCA0114W

                 Voltage

28V

               Light colour

Blue / White

                    Card Legend Colour

White

KCA0116W

                 Voltage

28V

               Light colour

Red

                    Card Legend Colour

White

KCA0120W

                 Voltage

28V LED

               Light colour

Warm White

                    Card Legend Colour

White

WL1001KCA1

                 Voltage

5V

               Light colour

Blue / White

                    Card Legend Colour

White

1004KCA2

                 Voltage

5V

               Light colour

NVG - NVIS Green A

                    Card Legend Colour

White

1005KCA1

                 Voltage

28V

               Light colour

NVG - NVIS Green B

                    Card Legend Colour

White

1006KCA1

                 Voltage

28V

               Light colour

NVG - NVIS  Blue

                    Card Legend Colour

White

1007KCA1

                 Voltage

28V

               Light colour

NVG - NVIS Green B

                    Card Legend Colour

White

1008KCA2

                 Voltage

28V

               Light colour

Blue / White

                    Card Legend Colour

White

1009KCA1

                 Voltage

28V

               Light colour

NVG - NVIS Green B

                    Card Legend Colour

Fluorescent Yellow

1014KCA1

                 Voltage

5V

               Light colour

NVG - NVIS Green B

                    Card Legend Colour

White
